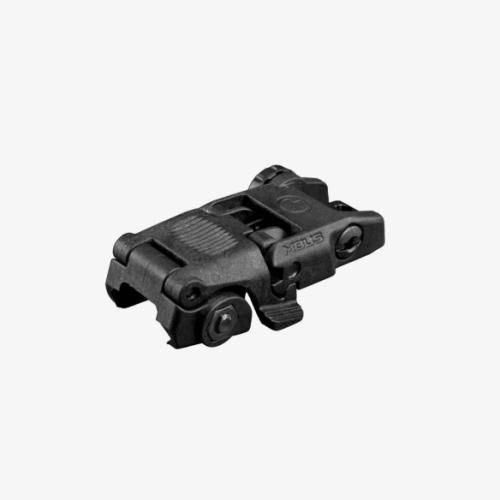

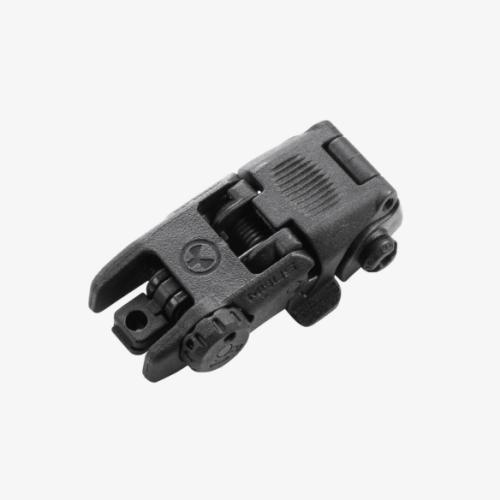

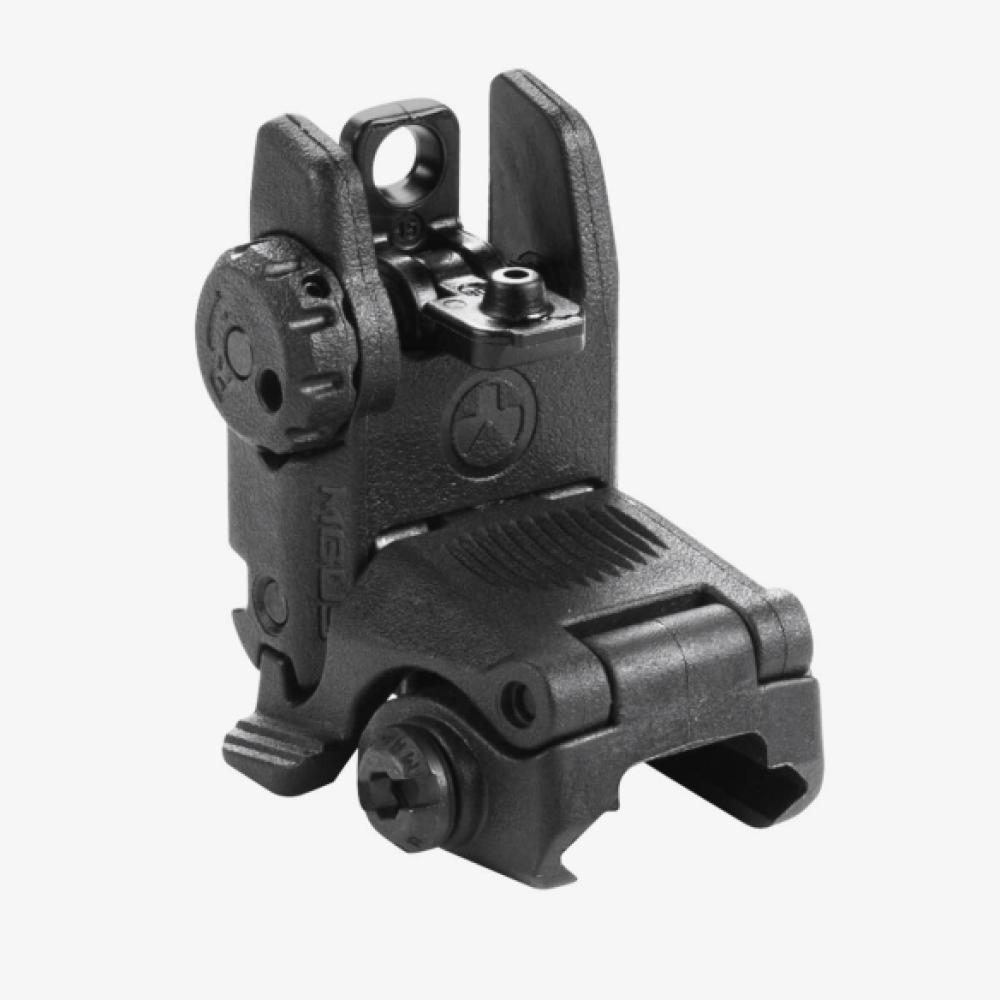

The MBUS (Magpul® Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15 / M16 platform.
FEATURES
Spring-loaded flip up sight easily activated from either side or by pressing the top
Protective wings shield the dual, same plane flip apertures
Sight can still be folded with either large or small aperture in position
Detent knob easily and positively adjusts windage
Impact-resistant polymer construction provides light weight and resists operational abuse
Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
Made in the USA.
SPECS
Position: Rear
Height above rail, stowed: ~0.51 in.
Length, deployed: 1.5 in.
Length, stowed: 2.6 in.
Weight, w/ hardware: 1.3 oz.
Center of aperture to top of rail: 1.42 in.
WINDAGE ADJUSTMENT
~0.7 MOA (0.754"/100m) per click with a 14.5" sight radius
~0.5 MOA (0.547"/100m) per click with a 20" sight radius
PRIMARY DESCRIPTION
SPECIFICATIONS
Condition :
New
Barcode / UPC :
873750004358
Primary color :
Black
On-sale :
No
